- Application: Acting as thermal break for the HVAC aluminium frames
- Material: PA66, PA6, PVC
- Higher Precision: ±0.05mm.
- Widths: 15~80mm available.
- Uf value: 0.1~3.0 W/m²·K
- Fast development: Cutting dies in 25 days.
- OEM: PA66 GF 0~45%; FR UL94; PA6, PP, PVC, co-extrusion…
- Extended Lifespan: Service life exceeding 70 years in real-world projects.

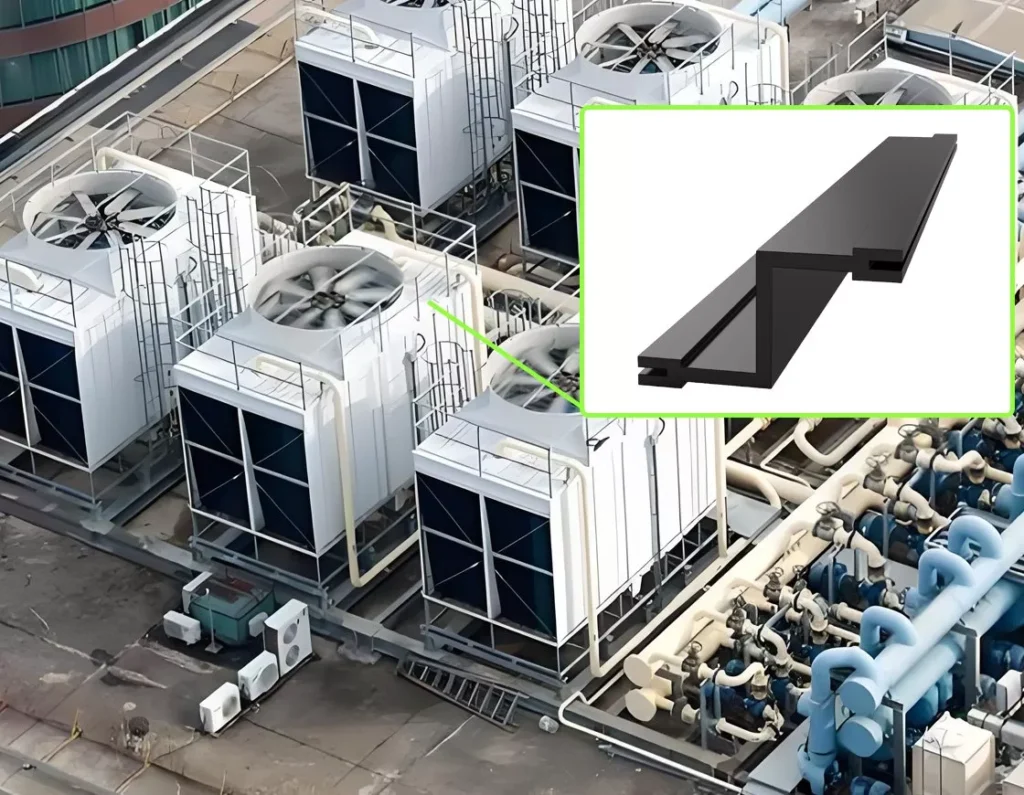

Polyamide Profile for AHU & HVAC Systems – Advanced Thermal & Acoustic Insulation

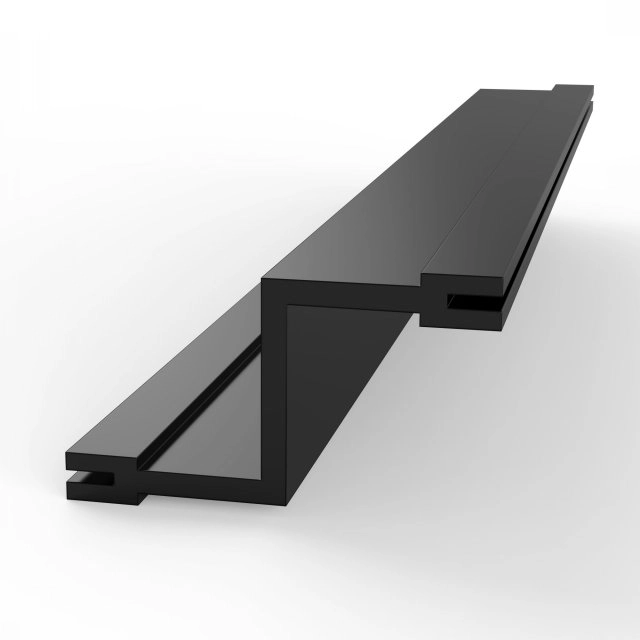

Engineered for modern air handling units, our Z-shaped polyamide profiles deliver superior thermal break performance and noise reduction in HVAC frameworks. Unlike traditional metal-plastic hybrid designs, our glass-fiber reinforced PA66 profiles integrate structural stability and thermal insulation in a single extruded component, eliminating thermal bridges (U-value <2.0 W/m·K) while withstanding mechanical tensile strength up to 116MPa.
Key Advantages:
✔ All-in-One Solution – Combines metal-like strength with polymer insulation, simplifying assembly
✔ Thermal Efficiency – Reduces energy loss by 25%+ versus standard HVAC framing
✔ Noise Damping – Lowers airborne sound transmission by 15dB
✔ Corrosion-Free – Immune to condensation damage in high-humidity environments
✔ Lightweight – 40% lighter than aluminum with comparable rigidity
Our factory operates its own laboratory to rigorously test and ensure quality control. With advanced granulation capabilities, we can accommodate diverse performance requirements and material specifications, enabling the customization of products to meet specific client needs.
